Commercial Flat Roofs is a local distributor in Mississauga, Ontario for Zonda Tools. Please contact us to obtain more information and pricing.
Diablo – Hot Air Welder
- An industrial-grade machine at a reasonable price.
- High wattage, heavily weighted machine will produce quality welds on thicker material at faster speeds.
- High volume, high-pressure brushless welding torch delivers up to 540 litres of hot air per minute.
- Front-wheel slides into welding/transport position.
- High quality, accurate digital speed, and temperature control.
- Visual seam guide.
- Perfect for large, commercial jobs.
| Model Number | ZTR-D500 |
|---|---|
| Power | 230V, 4600W, 20A 50/60Hz |
| Welding Speed | 1-33ft/min, 1-10m/min (adjustable) |
| Air Temp | 68-1150ºF, 20-620ºC (adjustable) |
| Seam Width | 1.5in, 40mm |
| Weight | 82lbs, 37kg (with weights) |
| Digital Display | Temperature and Speed |
| Material | PVC, TPO, Single Ply Roofing Membrane |
Sirocco – Hot Air Welder
- Front wheels are adjustable from side to side to avoid sheet fasteners, walls and roof jacks.
- Front wheels are large and fixed (not casters) to stabilize and help the machine run straight.
- Drive wheel articulates to keep machine flat on uneven roof surfaces. It is also adjustable to keep the machine welding in a straight line.
- High volume, high pressure brushless welding torch delivers up to 540 litres of hot air per minute.
- Welds Edge Metal and can weld as close as 3 inches to the wall.
- Lighter than the Diablo at 65lbs.
| Model Number | ZTR-S400 |
|---|---|
| Power | 230V, 4200W, 18.2A 50Hz |
| Welding Speed | 1-25ft/min, 1-7.6m/min (adjustable) |
| Air Temp | 68-1150ºF, 20-620ºC (adjustable) |
| Seam Width | 1.5in, 40mm |
| Weight | 65lbs, 29.5kg (with weights) |
| Digital Display | Temperature and Speed |
| Material | PVC, TPO, Edge Metal, Single Ply Roofing Membrane |

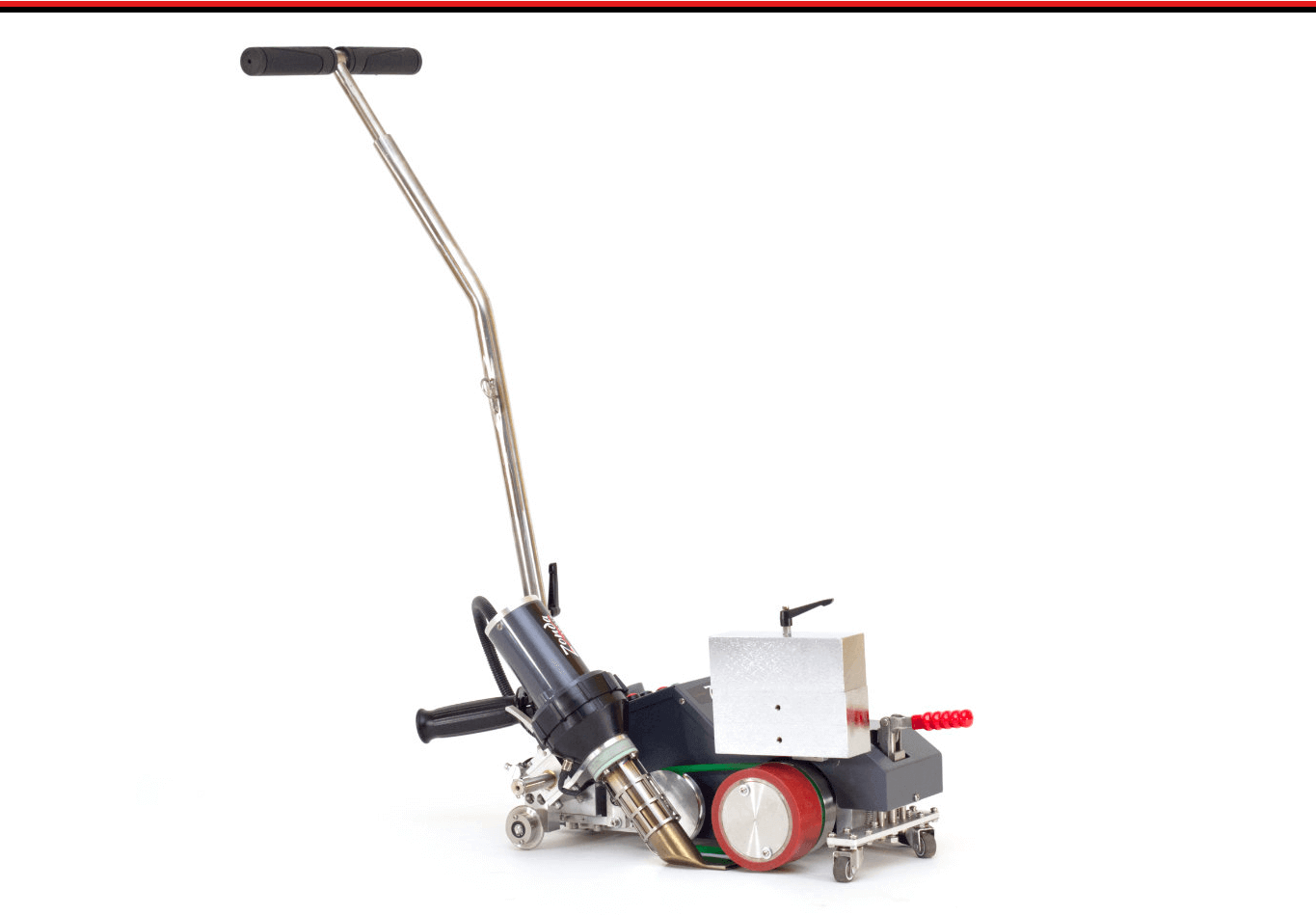

Calima Plus – Hot Air Welder
- Low cost, high performance welder.
- Available in 230 or 120 volt models. Can be used with 120v, 20amp household current.
- Accurate digital display for speed and temperature control.
- High volume, high pressure brushless welding torch delivers up to 540 litres of hot air per minute.
- Welds five times faster than hand welding.
- Small footprint for ease of handling.
- Easily welds Edge Metal.
- Laser light seam guide.
- 1 1/2″ weld seam width.
| Model Number | ZTR-C300 |
|---|---|
| Power | 230V, 2600W, 11.3A 50/60Hz or 120V, 2000W, 16.6A 50/60Hz |
| Welding Speed | 1-39ft/min, 1-12m/min (adjustable) |
| Air Temp | 68-1150ºF, 20-620ºC (adjustable) |
| Seam Width | 1.5in, 40mm |
| Weight | 28lbs, 12.5kg (with weights) |
| Digital Display | Temperature and Speed |
| Material | PVC, TPO, Edge Metal, Single Ply Roofing Membrane |

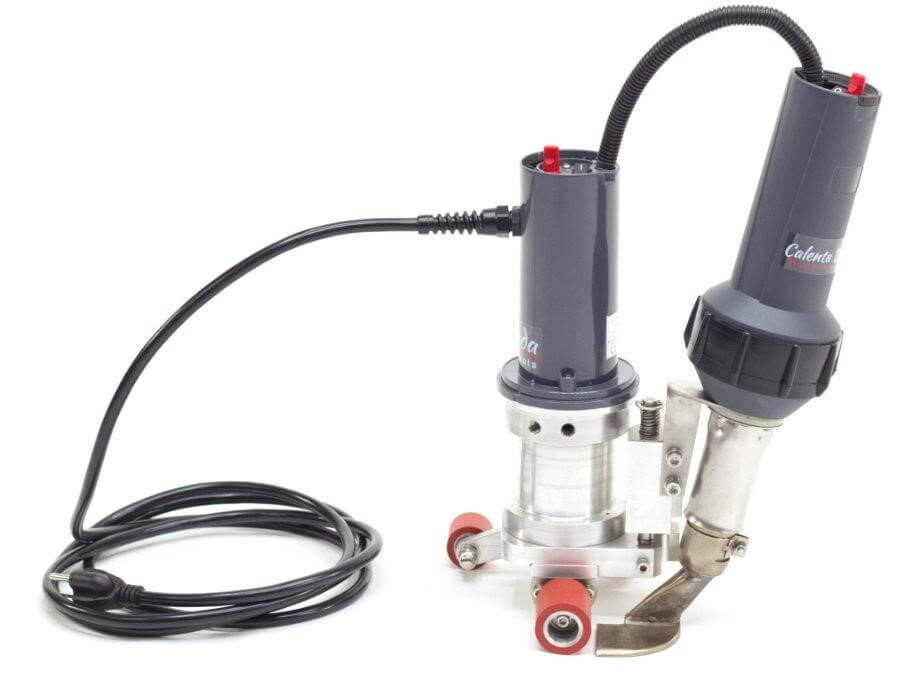

Calenta Drive – Hot Air Welder
- Very maneuverable to weld in tight areas.
- Great for doing boots and details.
- Motor driven for more consistent seams.
- Welds edge metal.
- Adjustable, high temperature output.
- Photoeye temperature control.
- High air flow rate at 180 litres per minute.
- Overheating protection.
- Built for heavy duty industrial use.
| Model Number | ZTR-C200 |
|---|---|
| Power | 230V, 1700W, 7.4A 50/60Hz or 120V, 1700W, 14.2A 50/60Hz |
| Welding Speed | 1-16ft/min, 0.5-5m/min (adjustable) |
| Air Temp | 68-1150ºF, 20-620ºC (adjustable) |
| Air Volume | 180L/min |
| Seam Width | 1.5in, 40mm |
| Weight | 11lbs, 5 kg |
| Material | PVC, TPO, Single Ply Roofing Membrane |

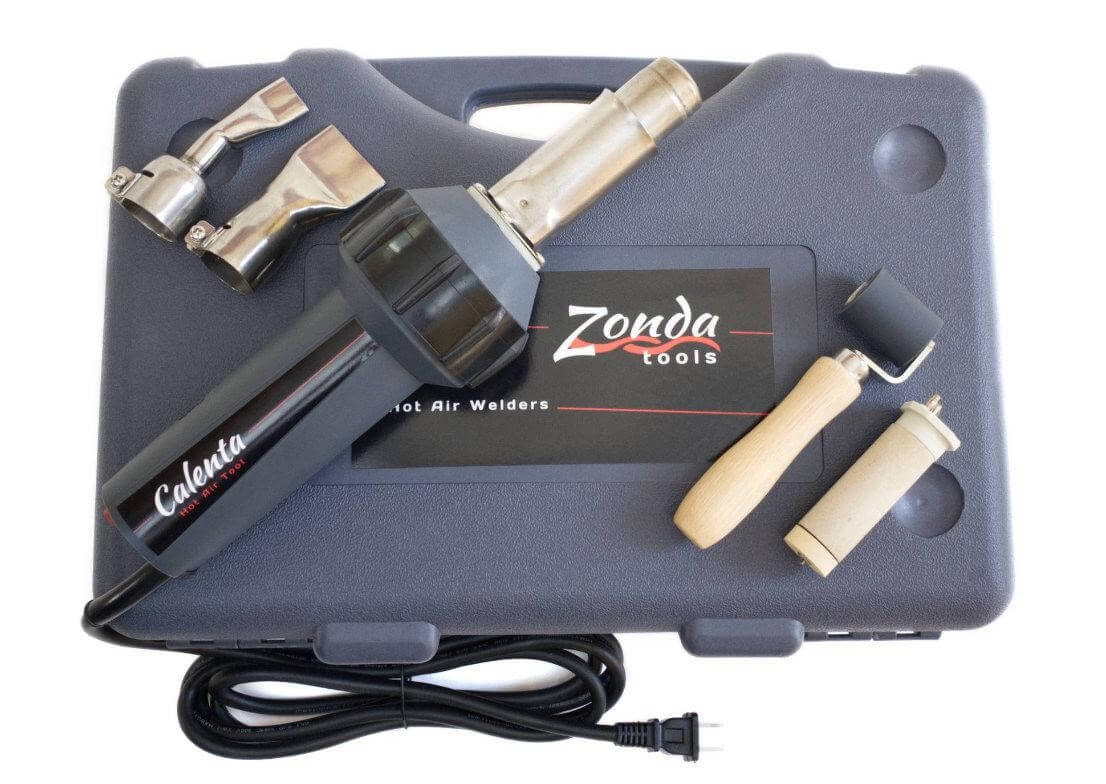

Calenta – Hot Air Tool
- Adjustable, high temperature output.
- Photoeye temperature control.
- High air flow rate at 180 litres per minute.
- Overheating protection.
- No roll grip.
- Built for heavy duty industrial use.
| Model Number | ZTR-C100 |
|---|---|
| Power | 230V, 1600W, 7A 50/60Hz or 120V, 1600W, 13.3A 50/60Hz |
| Air Temp | 68-1200ºF, 20-650ºC (adjustable) |
| Air Volume | 180L/min |
| Noise | ≤65db |
| Weight | 2.5lbs, 1.05kg |
| Digital Display | Temperature and Speed |
| Material | PVC, TPO, Single Ply Roofing Membrane |
1 Year Machine Replacement Guarantee
All of our machines are backed by a 1 year complete machine* replacement warranty. In the unlikely case that the machine breaks and becomes non operational we will repair it or replace it with a brand new machine.
-
The guarantee only applies to the original owner with proof of purchase.
-
Machines that have been misused or ignored safe operation requirements will be exempt.
-
If the machine cannot be repaired in a timely manor it will be replaced.
-
When available loaner machines will be sent while repairs are taking place.
-
Our main goal is to provide excellent service, not just at the time of sale, but for the life of the product.
2 Year Parts And Labor Warranty
Every machine* also carries a 2 year parts and labor warranty. We are confident in our products ability to last and deliver quality welds in the toughest work environments again and again.
-
The warranty only applies to the original owner with proof of purchase.
-
We will replace, free of charge, any faulty mechanical or electronic elements.
-
This warranty does not cover any wear parts such as: carbon brushes, heat elements, rubber air dam, silicon tires, motor chain, etc.
* The term “Machine” includes all hot air welders and wedge welders. Accessories shipped with our machines or purchased separately such as cases, nozzles, adjustment tools, etc are not included.
